Rigging Hardware
Every Fitting, Certified
Shackles, eye bolts, swivels, hooks, turnbuckles, and master links — all rated, certified, and traceable. The complete hardware range for every rigging assembly.
Product Range
Hardware Range
All hardware supplied with WLL markings and EN/DIN/ASME certification on request.

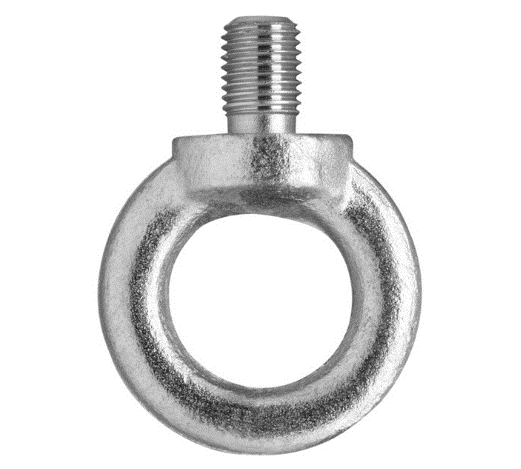

Eye Bolt (Metric)
Forged metric eye bolts for anchoring slings and rigging hardware to machinery, structures, and equipment.
Capacity
0.08–32 t
Thread
M8–M64
Type
Collar / plain
Standard
DIN 580 / 582

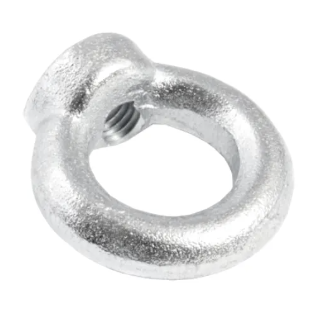

Eye Nut
Metric eye nuts for threaded rod and bolt terminations in rigging assemblies and structural anchoring.
Capacity
0.08–20 t
Thread
M8–M48
Type
Metric eye nut
Standard
DIN 582

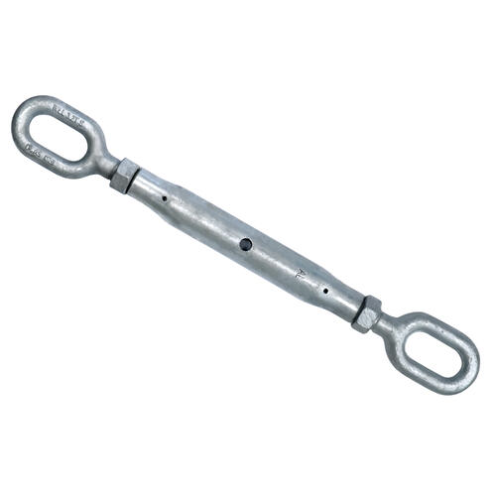

Rigging Screw (Eye to Eye)
Eye-to-eye rigging screws for cable tensioning, guy-line adjustment, and structural alignment with fine-pitch threading.
Capacity
1–16 t
Thread
M8–M42
Type
Eye to eye
Standard
DIN 1480

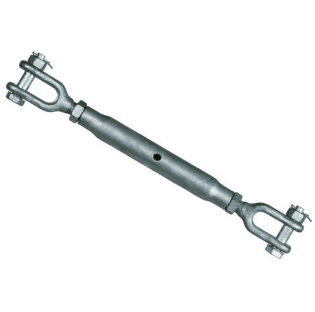

Rigging Screw (Jaw to Jaw)
Jaw-to-jaw rigging screws for robust cable and structural rod tensioning applications.
Capacity
1–16 t
Thread
M8–M42
Type
Jaw to jaw
Standard
DIN 1480
Turnbuckle (Open)
Open-body turnbuckles for cable tensioning, tie-down, and structural alignment applications.
Capacity
0.5–30 t
End Fittings
Hook / eye / jaw
Body
Open
Standard
DIN 1480
Turnbuckle (Closed)
Closed-body turnbuckles for precision cable tensioning and marine rigging where smooth finish is required.
Capacity
0.5–30 t
End Fittings
Eye / jaw
Body
Closed
Standard
DIN 1480
Bow Shackle (Screw Pin)
Grade 6 and Grade 8 bow shackles for general rigging, chain sling terminations, and below-hook connections.
Capacity
0.5–150 t
Grade
6 / 8
Pin Type
Screw / bolt
Standard
EN 13889
Dee Shackle (Straight)
Straight-pattern dee shackle for in-line rigging applications where bow shackles would introduce lateral load.
Capacity
0.5–55 t
Grade
6 / 8
Pin Type
Screw / bolt
Standard
EN 13889
Swivel Hoist Ring
360° rotating and 180° pivoting hoist ring for angular and multi-directional lifts without WLL reduction.
Capacity
0.5–100 t
Rotation
360° / 180°
Thread
M12–M100
Standard
ASME B30.26
Swivel
Grade 8 swivels for connecting chain slings and rigging hardware where load rotation must be accommodated.
Capacity
1–20 t
Grade
8
Type
Hook / jaw / eye
Standard
EN 1677
Safety Hook
Forged safety hooks with spring-loaded latch for crane, hoist, and sling applications.
Capacity
0.5–50 t
Latch
Spring safety
Type
Clevis / eye
Standard
EN 1677
Oblong Master Link
Grade 8 oblong master links for multi-leg chain sling assembly and below-hook connection points.
Capacity
Up to 32 t
Grade
8
Shape
Oblong / pear
Standard
EN 1677-4
Rigging Hardware in Southern Africa
Kashi Cranes supplies a comprehensive range of rigging hardware including shackles, eye bolts, swivel hoist rings, turnbuckles, swivels, hooks, and master links for construction, mining, marine, and industrial lifting operations across Southern Africa.
All rigging hardware is supplied to EN 1677, EN 13889, DIN, ASME B30.26, and SANS standards. WLL markings, batch traceability, and test certificates are available on request.
For bulk hardware orders, custom configurations, or stainless steel variants, contact Kashi Cranes at info@kashmancranes.co.za.
